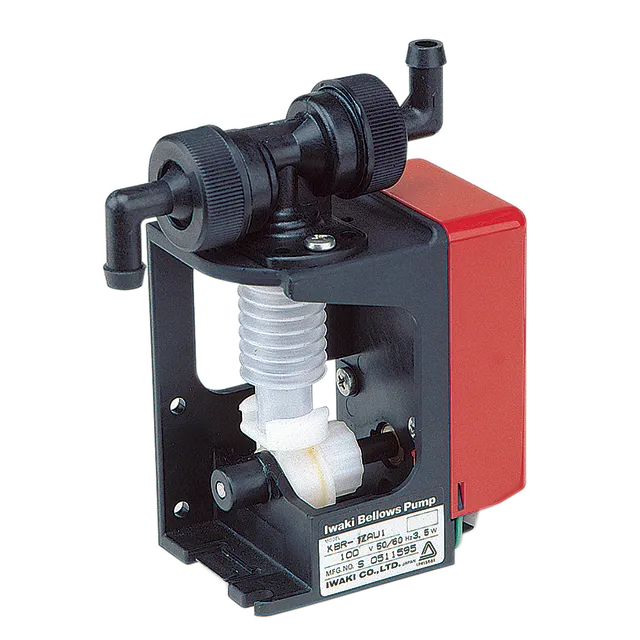

Max. discharge capacity range(50/60Hz): 4.1 - 180 / 4.9 - 216 mL/min Compact bellows pumps best suited for built-in equipment applications
※In order to download information materials and catalogues, you need to register a user
account (for free) with us. Membership Registration
Manufactured using a combination of polypropylene and synthetic rubber, the pumps in this series can handle acids, alkalis, and various corrosive chemical solutions. Furthermore, capable of dry run operation and self-priming, these pumps can be used for multiple purposes as desired.
Since the pumps in this series are free of shaft seal, there is no trouble caused by liquid leakage. Also, the pump has its motor protected with a cover.
The specially designed bellows, molded as a single body, can ensure tens of millions of expansion and contraction cycles. Combined with its rugged drive mechanism, the pump provides superior durability.
The pump provides three types of flow rates by changing its bellows. Moreover, if the pump is a multi-head type, proportionate injection of several different liquids is also possible.
Max. discharge capacity range | 4.1 – 180 / 4.9 – 216 mL/min |
---|---|
Max. discharge pressure | 0.01 MPa |
Main materials | GFRPP |
Required power range | 3.5 – 4.5 W |
Liquid temperature range | 5 – 40˚C |
Viscous liquid | Please contact us for details. |
Slurry liquid | Can not be handled. |
