Reciprocating diaphragm liquid pumps HSR-03/06/09/15

New Size Available Reciprocating Diaphragm Liquid Pumps　NEW

Compact, lightweight, reciprocating diaphragm liquid pumps suitable for built-in equipment.
Transferring liquid at high pressure and motor with built-in variable speed control (external input signal 1 – 5 VDC).

Features of HSR-03/06/09/15

Design for High-Pressure Liquid Transfer

Max. Discharge pressure 0.6 MPa
Transferring liquid at high pressure

Wide Selection

Variable flow capacity with 1 – 5 VDC

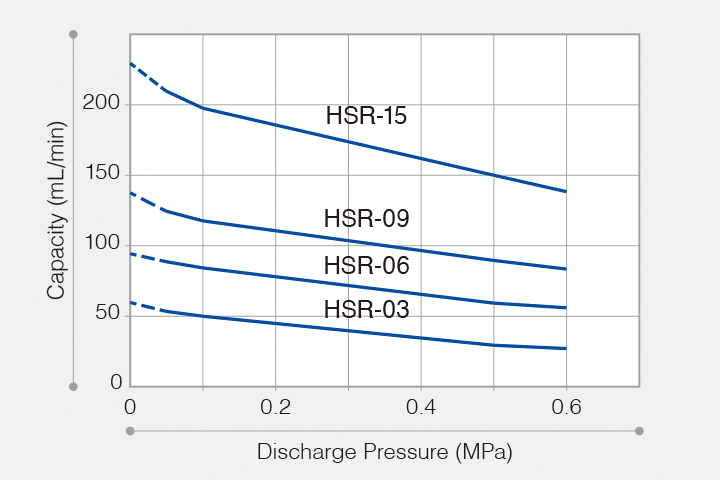

Discharge capacity range 30 – 150 mL/min

• Discharge pressure: 0.5 MPa

Design for Compact and Lightweight

Compact and lightweight design for easy layout in equipment.
Contributes to equipment efficiency and downsizing.

Applications

Analyzers, Medical equipment, Laboratory, Printing

Specifications

• Set the discharge pressure below the specified value (0.6 MPa or less).
• The discharge rate is the value when clean water at 20°C is transferred. Note that the discharge rate varies depending on the liquid temperature, viscosity, specific gravity, etc.
• The maximum capacity at the variable external input 5 VDC and around 0 MPa is for reference only, as the discharge capacity is not stable due to overfeeding.
• The self-priming height is specified at 0 m above sea level. Note that the self-priming height decreases at high altitudes.
• The fluid temperature range FKM: 10 – 40°C, EPDM: 5 – 40°C. (There shall be no change in liquid property such as freezing and slurry generation.)
• The ambient temperature range: 5 – 40°C. (The self-priming temperature range for FKM type: 10 – 40°C)
