MDM-40/50/65-2   NEW

MDM40-2, MDM50-2 and MDM65-2 have achieved a higher head and a larger flow rate while retaining the advantages of the MDM series.
Maximum head about 90m, Maximum flow rate 1800L/min, expanded selection range.
Newly designed high-efficiency magnetic coupling.

マグネットポンプMDM

High efficiency and low NPSH by optimizing design (Improvement of wetted parts structure)
We pursued hydraulic efficiency by utilizing CFD. As a result, best-in-class pump efficiency has been achieved. The newly designed impeller suppresses the occurrence of cavitation. The suction characteristics have also improved.
Withstand pressure 1.6MPa
Adopting a rear casing cover made of CFRP achieves high pressure resistance. (Carbon fiber reinforced plastic) Pumps can handle high specific gravity liquids.
リアケーシングとリアケーシングカバー
Improved maintainability
Addition of maintenance bolts makes disassembly and assembly safer and easier than conventional products.
バックプルアウト時

Features of MDM series

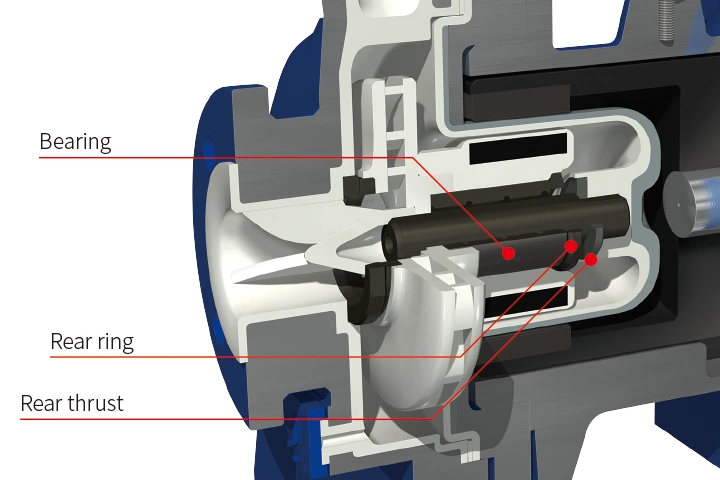

Unique design endurable to dry running (Non contact system)
The pump design features a mechanism to withstand dry running. High magnet power of the rare earth magnets prevents the magnet capsule coming into contact with the thrust ring of the rear casing, thus preventing melting of fluororesin components due to heat generation. This greatly improves resistance against dry running in comparison with conventional magnetic drive pumps made of fluororesin.
Note: Only CF type (fitted with high density carbon bearing) can cope with dry running. Dry running is not permitted in the case of KK type.
ETFE and PFA available in standard models
Carbon fibre reinforced ETFE (CFRETFE) and PFA linings can be supplied to meet many varying duties. PFA being a natural unfilled material generates fewer contaminants and makes it ideally suited for transfer of high purity chemicals.
Back pullout system
In order to facilitate inspection and maintenance, this series employs the back pullout system. This enables one to conduct inspections internally and replace parts without removing piping. The pump is designed to include safety measures that can prevent the liquid from leaking when the foot support is pulled back.

Specifications (50/60Hz)

Max. discharge capacity range 200 – 1800 / 200 – 1800 L/min
Max. head range 9 – 74 / 12.5 – 107 m
Main materials CFRETFE, PFA
Required power range 1.5 – 30 kW
Discharge bore 25 – 65A
Liquid temperature range CFRETFE: −20 – 105˚C, PFA: −20 – 150˚C
Sealing method Seal-less construction
