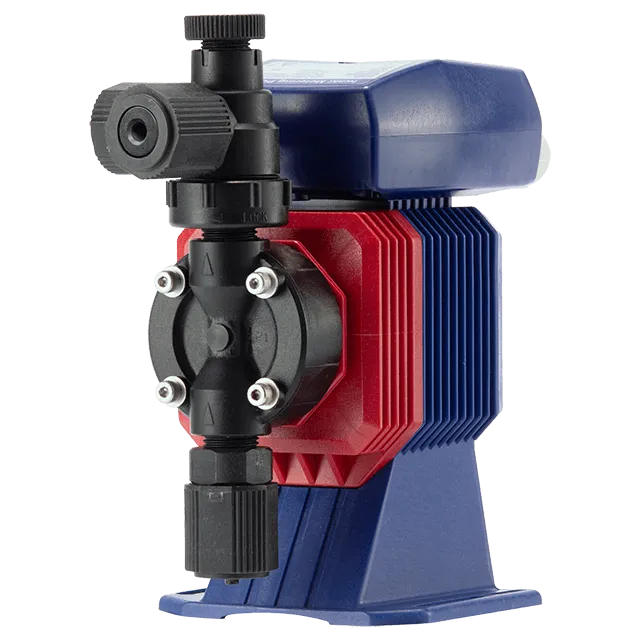

Features of EHN-R-H series

Max. discharge pressure: 1.5 MPa (Max. 360 spm)

Specifications of pump

Discharge capacity range 30 – 60 mL/min
Max. discharge pressure 1.5 MPa
Main materials GFRPP, PTFE
Stroke rate 1 – 360 spm
Power voltage 100 – 240 VAC 50/60 Hz single phase
Liquid temperature range 0 – 60ºC
Viscous liquid Please contact us for details.

Specifications of controller

Operation mode Manual, EXT (Pulse multiply or dividing)
Control function Setting
  • Manual
    stroke rate 1 – 360 spm
  • External
    Digital input operation: Multiply 1:n  n=1 – 999, Dividing n:1  n=1 – 999
Stop The pump stops while receiving the stop signal (Make off/Make on can be selected by changing controller setting)
Input Pulse No voltage contact, Open collector
Stop No voltage contact, Open collector
Power voltage 100 – 240 VAC 50/60 Hz single phase
