Discharge capacity range: 38 – 450 mL/min Electromagnetic metering pump equipped with advanced type digital controller & multi-voltage
※In order to download information materials and catalogues, you need to register a user
account (for free) with us. Membership Registration

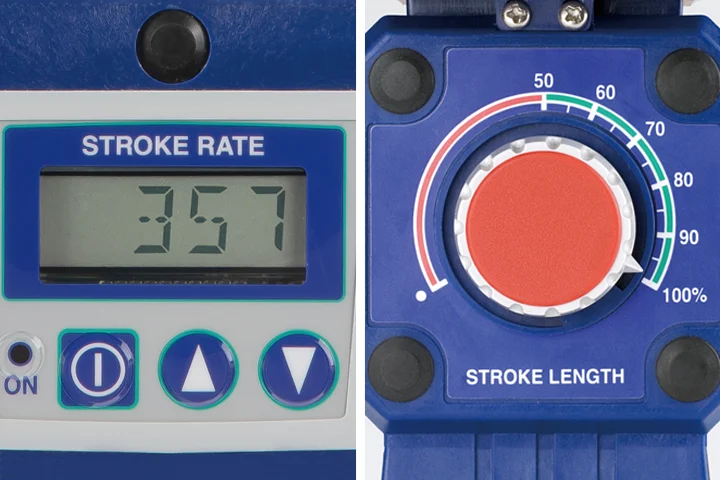

Thanks to digitized controller, stroke speed can be adjusted by 1 spm step from 1 – 360 spm. Combined with stroke length adjustment, you can do the fine adjustment from very small flow to maximum flow rate.
Multi-voltage power source from 100 – 240 VAC for all models. You are now free from worrying about power voltage.
Standard pump head models (VC/VH/PC/ PH/PP) equip air vent valve. Air in the pump chamber can be easily released by turning knob.
Each unit such as driving unit and control unit is sealed to make the pump IP66 equivalent water/dust-proof.
• Do not install pump outdoor.
External signals through an analogue input and a digital input can control operation. Use the analogue input to make proportional control and the digital input to run the pump with a multiplier or a divisor.
The use of a new hose stopper eliminates a twist in tube connection.
• Except for the following
Wet-end material: FC type, SH type, Accessories: Check valve CS type, Controller: EHN-R/YN Flow Checker corresponding type, Backflow prevention valve, Back pressure valve, Flow checker, T-joint
The pump starts to run at a full speed (360spm) once a flow checker detects gas lock in the pump head.
• The pump stops when having failed to resolve gas lock.

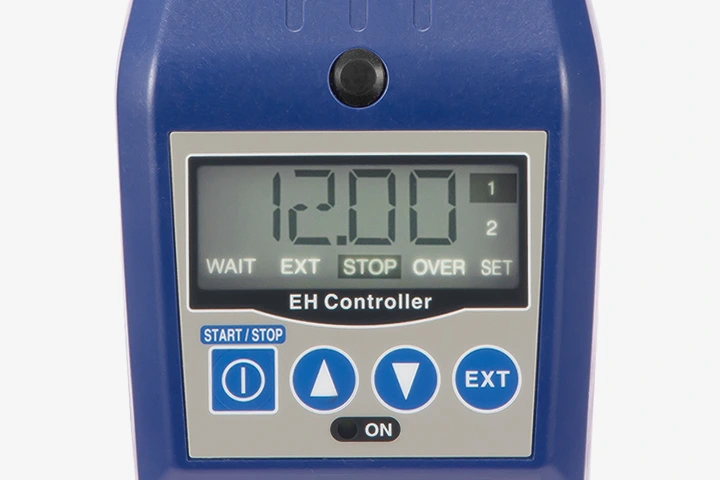

Pump run/stop and stroke rate setting (1 – 360 spm) can be done by keys. Stroke rate can be set either when pump is running or stopped.

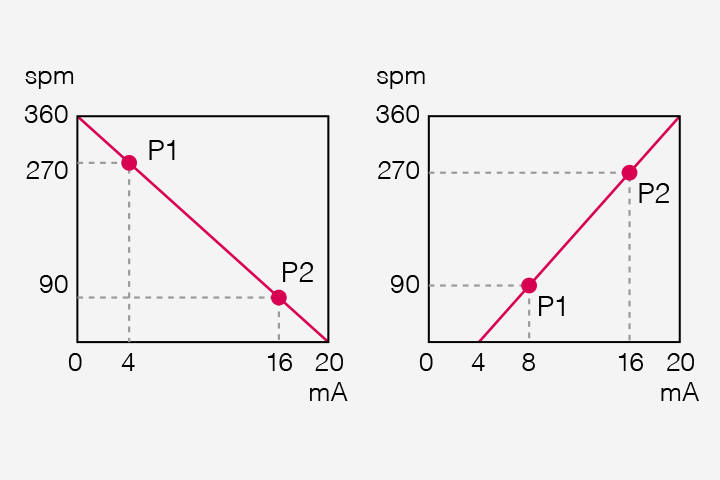

Proportional control of spm by programming 2 points between 0 – 20 mA.
Multiply (1 : n)
Pump makes multiply operation by external pulse signal. Pump makes “n” times shots against one pulse signal input. “n” can be set from 1 to 999. Pulses which came while operation are put in memory up to 65535 shots.
Dividing (n : 1)
Pump makes dividing operation by external pulse signal. Pump makes one shot against “n” times pulse input. “n” can be set from 1 to 999.
• If “n” is set at 1, pump makes synchronous operation. If pump is connected to optionally available EH controller, please use this function.
Pump stops by external contact signal. Pump operates when stop signal input is released. This function enables pump ON/OFF control. This is convenient function when used in combination with level sensor.
• It is possible to operate pump while STOP signal comes in (Change over with keys). In this case, when pump is operated in EXT mode, pump operates synchronous with EXT signal input while STOP signal is coming in.
PA mode

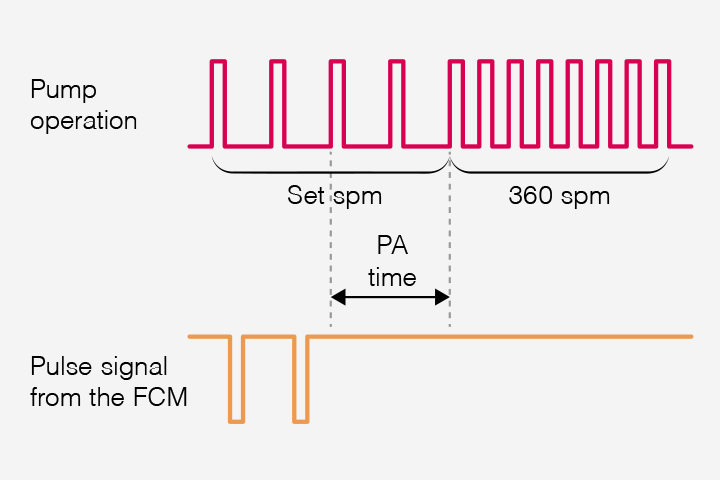

When the FCM does not detect a suction-line flow for the PA time, the pump starts to run at full speed (360spm).
PA+AL mode

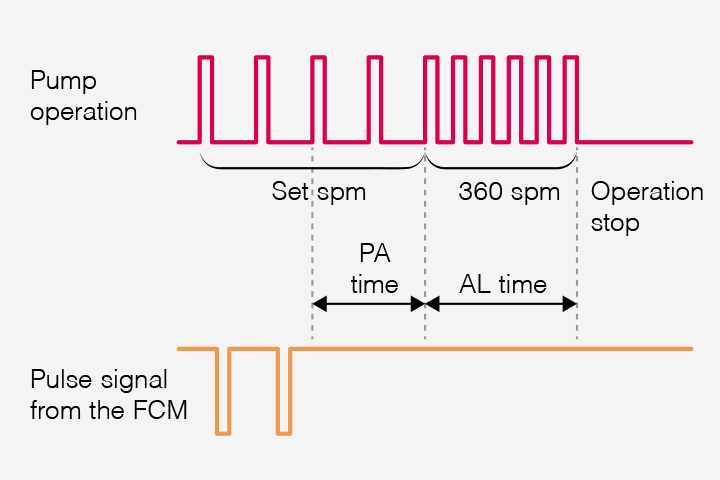

When the FCM does not detect a suction-line flow for the PA time, the pump starts to run at full speed (360spm) for the AL time and stops afterward.
PA+AL+RE mode

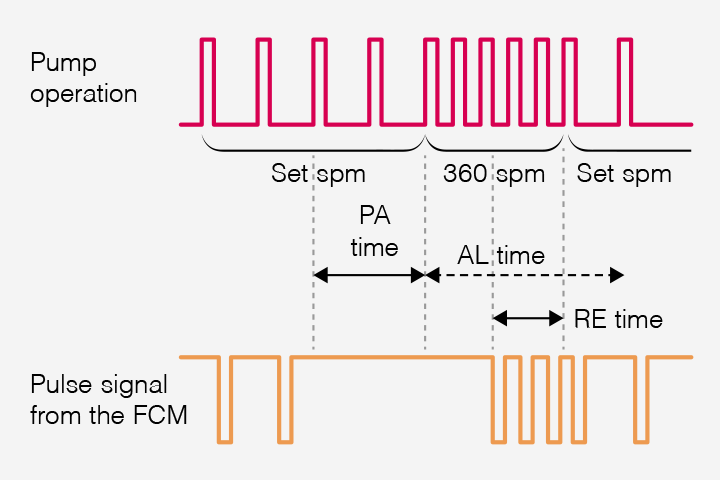

When the pump starts to run at full speed (360spm) for the AL time and the FCM keeps detecting a suction-line flow over the RE time, operation at a set speed or programmed behaviour will be restored.
Discharge capacity range | 38 – 450 mL/min |
---|---|
Max. discharge pressure range | 0.2 – 1.0 MPa |
Main materials | PVC, GFRPP, PVDF, SUS316, PTFE |
Stroke rate | 1 – 360 spm |
Liquid temperature range | PVC type: 0 – 40°C GFRPP type, PVDF type, SUS316 type: 0 – 60°C |
Viscous liqid | Please contact us for details. |
Operation mode | Manual, EXT (MULT/DIV/ANA) | |
---|---|---|
Control function | Setting |
|
STOP | The pump stops while receiving the stop signal (Make off/Make on can be selected by changing controller setting) | |
Input | Pulse | No voltage contact, Open collector |
Stop | No voltage contact, Open collector | |
Analogue | 0 – 20 mA | |
FCM | Open collector | |
Alarm output | No voltage contact | |
Sensor Power voltage | 12 VDC at 20 mA | |
Power voltage | 100 – 240 VAC 50/60 Hz single phase |
