Features of ETU series

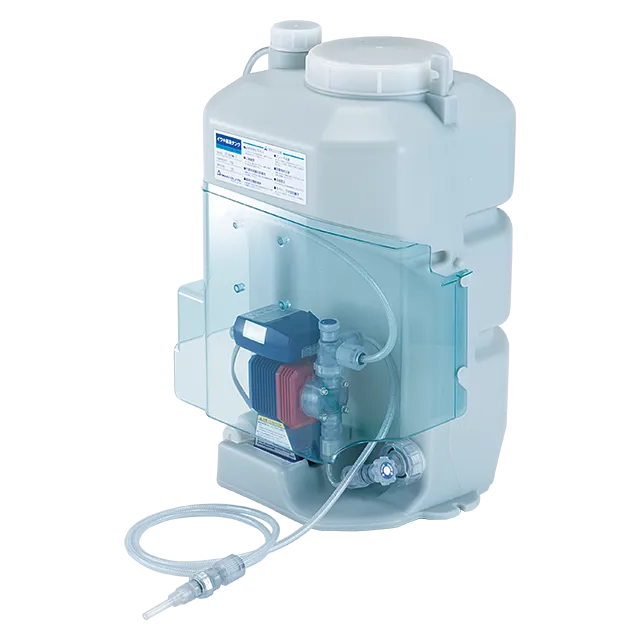

  • Sodium hypochlorite feeding unit with integrated electromagnetic metering pump and chemical tank.
  • As pump is installed at the bottom, gas lock is difficult to occur, ensuring secured chemical feeding.
  • Chemical tank is made from PE having excellent chemical and impact resistance (equipped with anti-splash cover)

Specifications

Model ETU-25NR ETU-50NR ETU-120N
Tank capacity 25L 50L 110L
Pump model/ specifications EHN-B09VC1/
Max. discharge capacity: 18 mL/min, Max. discharge pressure: 0.5 MPa
EHN-B11VC1R-55/
Max. discharge capacity: 38 mL/min, Max. discharge pressure: 1.0 MPa
EHN-B16VC1R-55/
Max. discharge capacity: 65 mL/min, Max. discharge pressure: 0.7 MPa
EHN-B21VC1R-55/
Max. discharge capacity: 100 mL/min, Max. discharge pressure: 0.4 MPa
