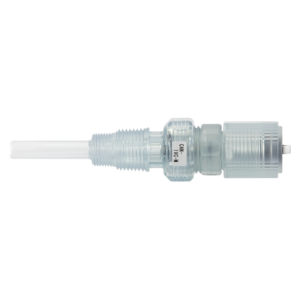

Check valve

Check valve

Attached to the hose on the discharge side. It prevents overfeeding and backflow of the chemical solution and also prevents siphon.
CAN type: Standard type
CBN type: Inline type to be installed in the middle of the hose
CS type: Stainless steel type for high temperature. For general use/for boiler.
TCAN type: Tube type with its discharge outlet is a tube. As there is no stagnant area, clogging due to crystallization of the chemical can be prevented.

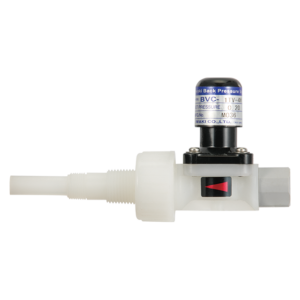

Back pressure valve with check valve

Back pressure valve with check valve

This is installed when the pressure difference between the discharge side and the suction side (differential pressure) is small. It improves injection accuracy and prevents backflow. The release pressure is adjustable.

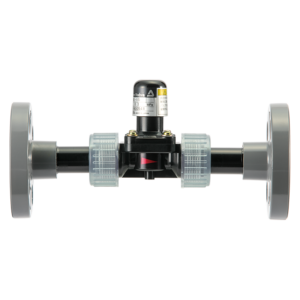

Back pressure valve

Back pressure valve

This is installed when the pressure difference between the discharge side and suction side (differential pressure) is small.

Relief valve

Relief valve

When the pressure in the piping rises above the set pressure, the valve opens to release the pressure.

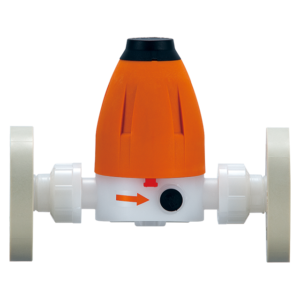

Back pressure valve/Relief valve (made by George Fischer)

Back pressure valve/Relief valve (made by George Fischer)

Back pressure valve / relief valve made of PVDF are suitable for use with the IX-B series.

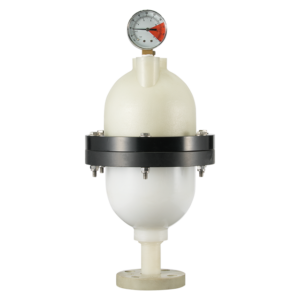

Dampener

Dampener

Installed on the discharge side. Reduces pulsation and prevents piping vibration.

Air chamber

Air chamber

Prevents piping vibration and overfeeding by suppressing the pulsation unique to a reciprocating pump.

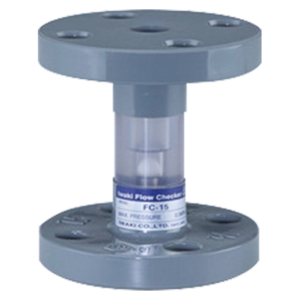

Flow checker

Flow checker

FCM type detects the liquid feeding on the suction side of the electromagnetic metering pump and outputs the liquid feeding status as a pulse. It can calculate the total number of pump shots and detect poor feeding of the liquid. FC type checks the discharge by detecting the move of the float inside the piping.

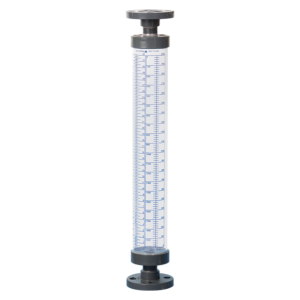

Measuring cylinder for calibration

Measuring cylinder for calibration

Used to calibrate the discharge rate of the pump. Installed on the suction side to measure the suction amount.

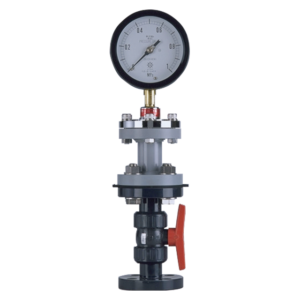

Pressure gauge set

Pressure gauge set

A convenient unit that combines a pressure gauge and a stop valve. Necessary to check the discharge pressure and control air supply to the air chamber. PVC type and SUS type are available.

Degassing joint

Degassing joint

Attached to the suction side of the pump to prevent mixing of gas when transferring a liquid like sodium hypochlorite which easily generates gas.

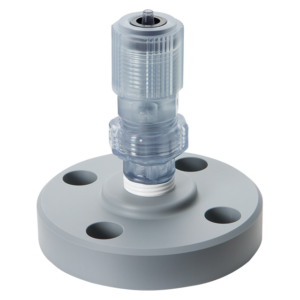

Hose flange

Hose flange

An adapter to connect the pump hose to the flange piping. It comes with or without a check valve.

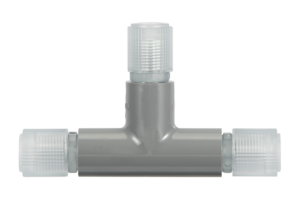

T-joint

T-joint

Used to branch off hose piping.

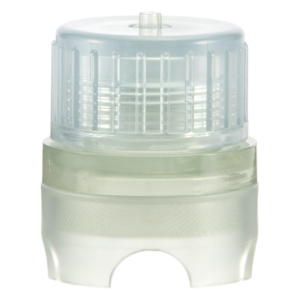

Strainer

Strainer

Attached at the end of the suction hose. Prevents foreign matter from entering the pump chamber.

Strainer with a foot valve

Strainer with a foot valve

Attached at the end of the suction hose. Prevents foreign matter from entering the pump chamber and water level fall in the suction hose when the pump is stopped.

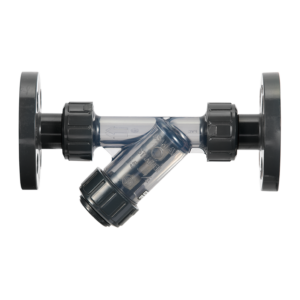

Y-type strainer (Mesh size #40)

Y-type strainer (Mesh size #40)

Installed in the suction piping to prevent dirt and foreign matter from entering the pump chamber. PVC type and SUS type are available.
