Features of P100, W100

The P100 / W100 series is a water treatment controller that has a multilingual display function and excellent operability.

Although it is an economical entry model, it can be widely used at all water treatment sites such as cooling towers, hydroponic cultivation, and pools with abundant control settings. The large display and easy-to-read icons make it easy to set up.

  • Large display with icon based programming makes setup easy.
  • Compact ¼ DIN panel mount enclosure (P100)
  • Easy-to-install, economical wall-mount type (W100).
  • Supports multiple languages.
  • 4 points (3 points)Note of control output can be assigned according to the application and can be flexibly handled.

Note: P100=4 points, W100=3 points

Application example

Simple pH neutralization control (P100), small-scale cooling tower control with one-component control (W100), etc.

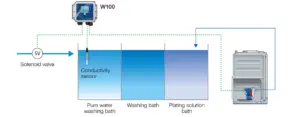

Electroless plating system

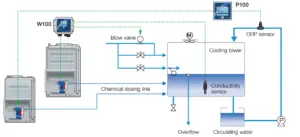

Cooling tower control

Polishing fluid control

Specifications

Model P100
WPHNP120A		 W100
WJPHNW120HA-N
Application For the pH Sensor and ORP Sensor without amplifier
Measurement
pH
 Measuring range: 0.00 to 14.00 pH
Repeatability: ±0.05 pH (per controller)
ORP Measuring range: ±1,500.0 mV
Repeatability: ±5 mV (per controller)
Temperature Measuring range: 0.0 – 120.0°C, Linearity: F.S±1% (per controller)
Cumulative flow into a low-speed flowmeter Max frequency: 10 Hz, Meter factor: 0 to 100,000 lit, m3, Flow unit: lit, m3
Cumulative flow into a high-speed flowmeter Max frequency: 500 Hz, Pulse constant: 0.00 to 100,000.00 pulse/lit, m3, Flow unit: lit,  m3
Instant flow into a high-speed flowmeter Flow unit: lit, m3 Time unit: /sec, /min, /hour, /day
Input pH input Glass film electrode (without amplifier)
ORP input ORP electrode (without amplifier)
Temperature Pt 100, Pt 1,000 (freely selectable), automatic temperature compensation
ContactNote1 No voltage contact signal × 1 No voltage contact signal × 2
Interlock, low-speed flowmeter, high-speed flowmeter (freely selectable)
Output Relay • No voltage contact x 2 1a 250 VAC 8A (resistance load)
• Semiconductor contact x 2 1a 48 VAC/DC 0.5A for the pulse control of pumps		 • No voltage contact x 1 1a 250 VAC 6A (resistance load)
• Semiconductor contact x 2 1a 40 VAC/DC 0.2A for the pulse control of pumps
Transmission DC4 to 20 mA × 1, Load resistance: 600Ω or lower, isolated
Power supply voltageNote2 1Ø AC100 to 240V, 50/60Hz
Model P100
WCNP110A/120A		 W100
WJCNW120HA-N
Application For the General-purpose Conductivity Sensor
Measurement Two-electrode conductivity
 Measuring range:0.000 to 30.000 mS/m (cell con     stant: 0.01), 0.00 to 300.00 mS/m (cell  constant: 0.1), 0.0 to 3,000.0 mS/m (cell  constant: 1),0 to 30,000 mS/m (cell constant: 10)
Linearity: F.S±1% (per controller)
Electro- magnetic conductivity

 Measuring range:50.0 to 1,200.0 mS/m,50.0 to 1,200.0 mS/m,1,000 to 15,000 mS/m,5,000 to 50,000 mS/m,20,000 to 200,000 mS/m
Linearity: F.S±1% (per controller)
Temperature Measuring range: 0.0 – 120.0°C, Linearity: F.S±1% (per controller)
Cumulative flow into a low-speed flowmeter Max frequency: 10 Hz, Meter factor: 0 to 100,000 lit, m3, Flow unit: lit, m3
Cumulative flow into a high-speed flowmeter Max frequency: 500 Hz, Pulse constant: 0.00 to 100,000.00 pulse/lit, m3, Flow unit: lit,  m3
Instant flow into a high-speed flowmeter Flow unit: lit, m3 Time unit: /sec, /min, /hour, /day
Input Conductivity Input Two-Electrode Conductivity Sensor ESB Type, Electromagnetic Conductivity Sensor MCS Type
Temperature Pt 100, Pt 1,000 (freely selectable), automatic temperature compensation
ContactNote1 No voltage contact signal×1 No voltage contact signal×2
Interlock, low-speed flowmeter, high-speed flowmeter (freely selectable)
Output Relay • No voltage contact x 2 1a 250 VAC 8 A (resistance load)
• Semiconductor contact x 2 1a 48 VAC/DC 0.5 A, for the pulse control of pumps		 • No voltage contact x 1 1a 250 VAC 6A (resistance load)
• Semiconductor contact x 2 1a 40 VAC/DC 0.2A for the pulse control of pumps
Transmission DC4 to 20 mA × 1, Load resistance: 600Ω or lower, isolated
Power supply voltageNote2 1Ø AC100 to 240V, 50/60Hz

Note1: The max applied voltage is DC 9 V, and the max applied current is 2.3 mA to the contact. Use a component of the min applied load of 1 mA or lower as a contact component, such as a relay.
Note2: Do not apply any voltage that is outside the specifications; doing so may cause failure.
• Ambient temperature: 0 to 45°C
• Ambient Humidity: 35% to 85% RH; with no condensation in the controller
• Storage temperature: -20 to 80°C
• Installation conditions: No exposure to direct or reflected sunlight

pH • ORP sensor

SH/SR series

• Internal liquid replenishment type.
• Less clogging at the liquid junction and long life.
• It is ideal for process applications such as waste water treatment and surface treatment.

Conductivity sensor

Electrode type

• Measurement range*: 0.0〜3000.0mS/m, 0.00〜300.00mS/m, 0.000〜30. 000mS/m
• Operating temperature: 5〜45℃
• Temperature sensor: Pt1000 Ω

*Indicates the range when used with the W100 series or Intuition-6 series; these are not the performance of a stand-alone sensor itself.

Electromagnetic type

• Measurement range: 0〜200S/m
• Operating temperature: 0〜60℃*
• Temperature sensor: Pt1000 Ω

*This varies depending on the types and concentrations of liquid used.
